Webcam — Heatmap Cam

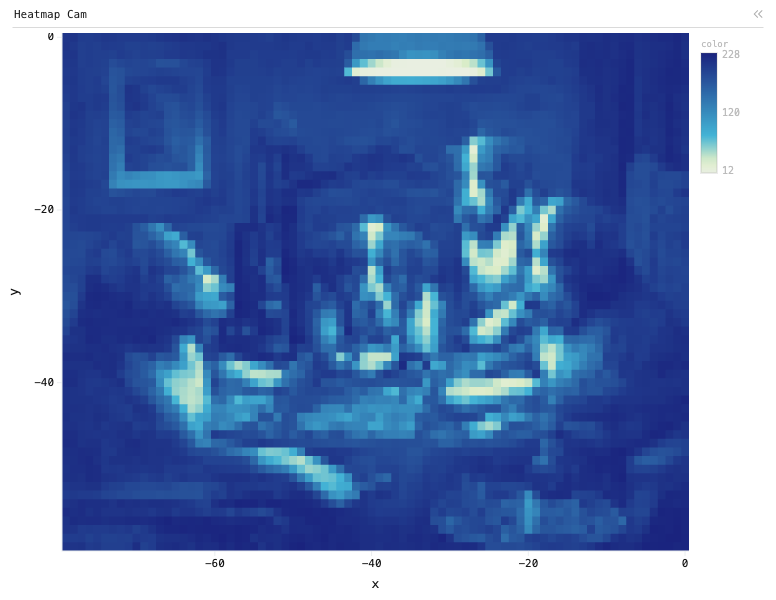

Heatmap chart of color, grouped by x, split by y, with 2 computed expression columns.

Live webcam luminance sampled into a Perspective table at 20fps (falls back to a placeholder image without a camera).

Data

Live webcam frames streamed into a Perspective table one pixel per row, and rendered back as real-time heatmaps, scatter plots and histograms.

Generated continuously in the browser by a JavaScript simulation streaming into a Perspective Table.

Configuration

This example is a saved <perspective-viewer> workspace. Pass this JSON to viewer.restoreWorkspace() to reproduce it over the same table:

{
    "layout": {
        "type": "tab-layout",
        "tabs": [
            "p0"
        ],
        "selected": 0
    },
    "panels": {
        "p0": {
            "table": "",
            "plugin": "Heatmap",
            "title": "Heatmap Cam",
            "group_by": [
                "x"
            ],
            "split_by": [
                "y"
            ],
            "columns": [
                "color"
            ],
            "expressions": {
                "y": "-floor(\"index\" / 80)",
                "x": "-\"index\" % 80"
            },
            "aggregates": {
                "New Column 1": "any"
            }
        }
    },
    "active": "p0"
}
