Market — Depth Timeseries

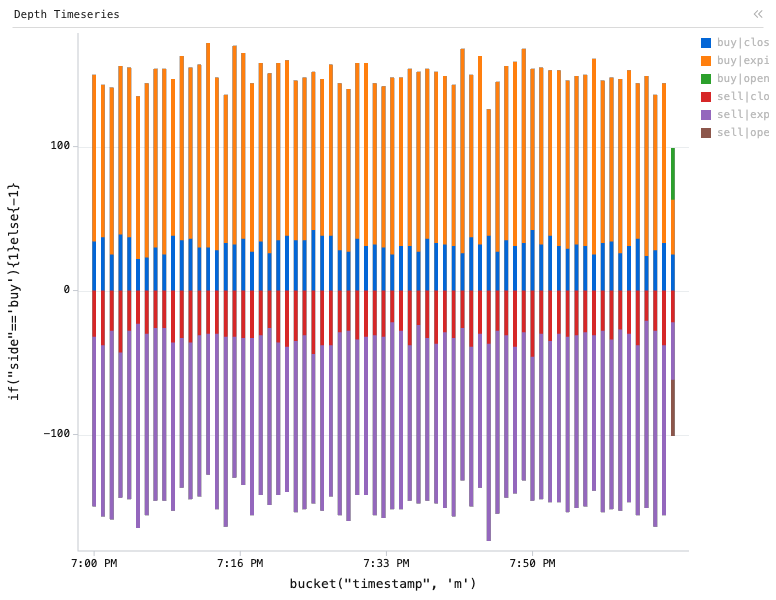

Y Bar chart of if("side"=='buy'){1}else{-1}, grouped by bucket("timestamp", 'm'), split by side and status, with 3 computed expression columns.

Simulated real-time order flow: a stateful matching engine on a private worker, view-mirrored to the UI.

Data

A simulated order book streaming into a Perspective table in real time: orders are created, filled, cancelled and expired continuously, and every data grid, pivot and chart updates incrementally as they arrive.

Generated continuously in the browser by a JavaScript simulation streaming into a Perspective Table.

Configuration

This example is a saved <perspective-viewer> workspace. Pass this JSON to viewer.restoreWorkspace() to reproduce it over the same table:

{
    "layout": {
        "type": "tab-layout",
        "tabs": [
            "p0"
        ],
        "selected": 0
    },
    "panels": {
        "p0": {
            "table": "",
            "theme": null,
            "plugin": "Y Bar",
            "plugin_config": {},
            "title": "Depth Timeseries",
            "group_by": [
                "bucket(\"timestamp\", 'm')"
            ],
            "split_by": [
                "side",
                "status"
            ],
            "columns": [
                "if(\"side\"=='buy'){1}else{-1}"
            ],
            "filter": [],
            "sort": [],
            "expressions": {
                "bucket(\"timestamp\", 'm')": "bucket(\"timestamp\", 'm')",
                "if(\"side\"=='buy'){1}else{-1}": "if(\"side\"=='buy'){1}else{-1}",
                "if(\"side\"=='sell'){-1}else{integer(null)}": "if(\"side\"=='sell'){-1}else{integer(null)}"
            },
            "aggregates": {
                "bucket(\"timestamp\", 'm')": "dominant"
            }
        }
    },
    "active": "p0"
}
